CE Certified Excavator Long Reach Boom Arm up to 34m

製品詳細

起源の場所: 中国広州

ブランド名: Haide

モデル番号: PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800

支払いと送料の条件

最小注文数量: 1

最高 の 価格 を 入手 する
今連絡してください
仕様
ハイライト:

CE certified excavator long reach boom

,

excavator long arm up to 34m

,

long reach excavator boom with warranty

最大長さ:
34m
適用されるトン数:
10tonから350ton
表面仕上げ:
砂を吹き付けられ、塗られる
材料オプション:
Q345B、Q690D、Weldox
全長:
13000mmから24000mm
重さ:
3000kg〜7000kg
最高の発掘の深さ:
9000mmから18000mm
Max ExtensivesCope:
12500mmから23600mm
最大掘り高さ:
11300mmから17300mm
折り畳み高さ:
2900mmから3400mm
バケツの容積:
0.3m3〜0.6m3
掘削機のトナージュ:
12tonから45ton
アクセサリーも含まれます:
バケツ、リンケージ、バケットシリンダー、オイルパイプ/ホース、潤滑システム
生産のリードタイム:
1セットで15日、3セットで20日間
コンテナ容量:
3つの完全なセット
最大長さ:
34m
適用されるトン数:
10tonから350ton
表面仕上げ:
砂を吹き付けられ、塗られる
材料オプション:
Q345B、Q690D、Weldox
全長:
13000mmから24000mm
重さ:
3000kg〜7000kg
最高の発掘の深さ:
9000mmから18000mm
Max ExtensivesCope:
12500mmから23600mm
最大掘り高さ:
11300mmから17300mm
折り畳み高さ:
2900mmから3400mm
バケツの容積:
0.3m3〜0.6m3
掘削機のトナージュ:
12tonから45ton
アクセサリーも含まれます:
バケツ、リンケージ、バケットシリンダー、オイルパイプ/ホース、潤滑システム
生産のリードタイム:
1セットで15日、3セットで20日間
コンテナ容量:
3つの完全なセット
記述

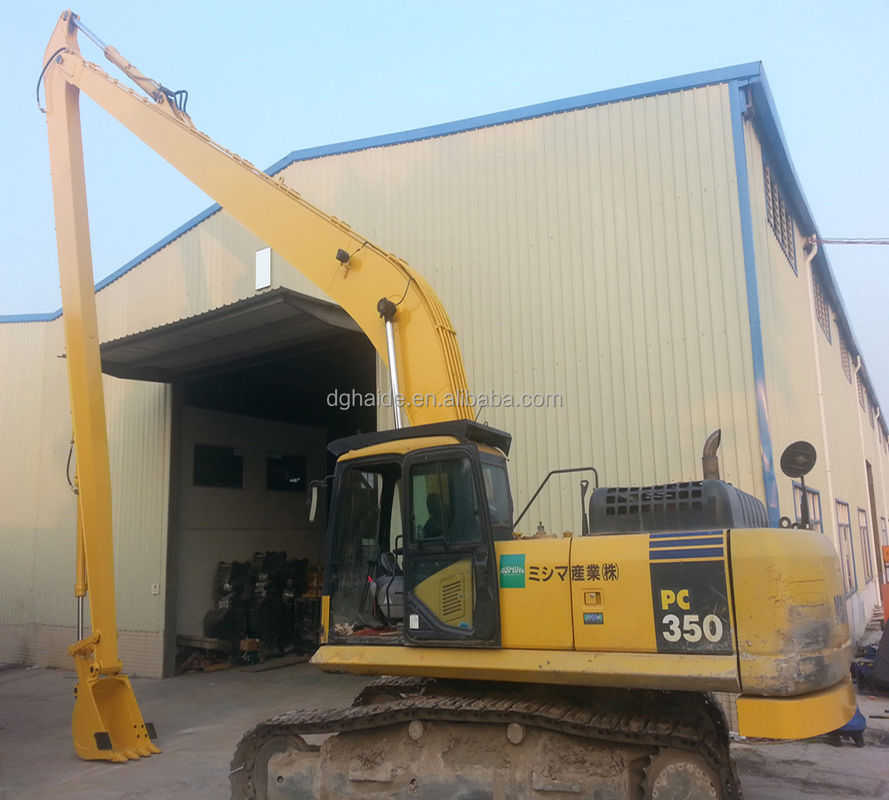

CE Certified Excavator Long Reach Boom Arm up to 34m
CE-approved PC Long Reach Boom and Arm
Product Specifications
Attribute Value
Purpose Long reach application for excavator
Excavator model Any make and model of excavator
Colour Optional
Certificate CE and ISO certificate
Accessory included bucket, linkage, bucket cylinder, oil pipe/hose, lubricating system
Maximum length 34m
Surface finish Sand-blasted and painted
Applicable excavator tonnage From 10ton to 350ton
OEM service Available
Warranty 6 months
Product Features
  • Compatible with all makes and models of excavators
  • Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
  • Large boom can be split into two sections for container transport
  • All steel plate edges are tapered by bevelling machine before welding for enhanced strength
  • One year warranty included
  • Reinforced construction available for heavy-duty applications like mining operations
  • Compliant with Europe Machinery Directive 2006/42/EC Article 12 with CE certification
  • Additional pipeline can be installed for extra attachments (breaker, hammer, quick coupler, etc.)
  • Established references in Australia, Europe, India, Bangladesh, Canada, South-east Asia, and South America
Certification & Documentation
  • CE and ISO certificates provided
  • Detailed product brochure available in PDF format
Packaging & Shipping
  • Initial protective film wrapping with steel wire securing inside containers
  • Three complete sets can be loaded per container using racks for upper sets
  • Production lead time: 15 days for 1 set, 20 days for 3 sets
Standard Models
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length(mm) 13000 15380 15380 18000 20000 22000 24000
Weight(kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth(mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height(mm) 11300 12510 12610 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m3) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage(ton) 12 20 22 30 35 40 45
CE Certified Excavator Long Reach Boom Arm up to 34m 0 CE Certified Excavator Long Reach Boom Arm up to 34m 1 CE Certified Excavator Long Reach Boom Arm up to 34m 2 CE Certified Excavator Long Reach Boom Arm up to 34m 3
